Property settings for COM-Object

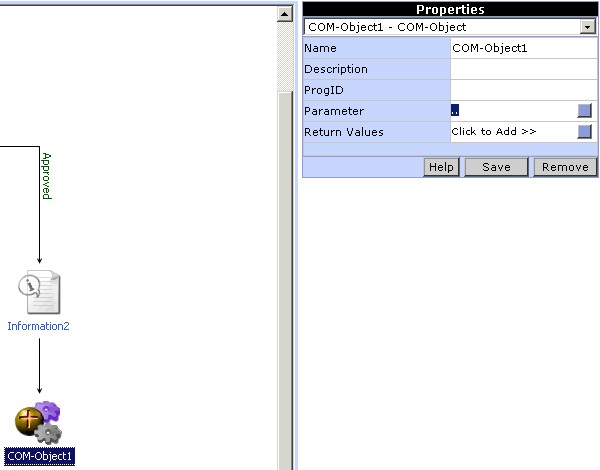

To add the COM-Object action to the workflow, click on the button for COM-Object in the Toolbox area. An icon for COM-Object is added automatically in the Design Area. Link this action appropriately with the workflow. To set the properties for notification click on the COM-Object icon. A list of properties for the COM-Object action will be displayed in the Properties pane. Enter an appropriate name and description for the COM object and set all the properties.

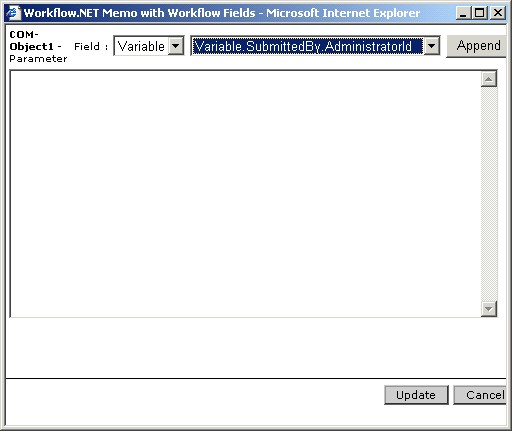

To specify the parameter, click on the button for the 'Parameter' property. A window pops up (Fig 2.), in which the parameter can be specified. Select a type of value (Value, Variable, Content), corresponding value for the property and click the Append button. After specifying the parameter click the Update button.

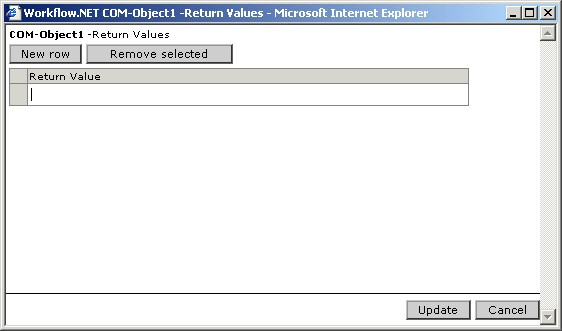

To specify the return value, click on the button for the 'Return Values' property. A window pops up (Fig 3.), in which the return value(s) can be specified. Click the Remove selected button to clear earlier values. Enter the return value in the Return Value field. Click the New row button to add additional rows of return values. After specifying the return value, click the Update button.
